Tablet Section

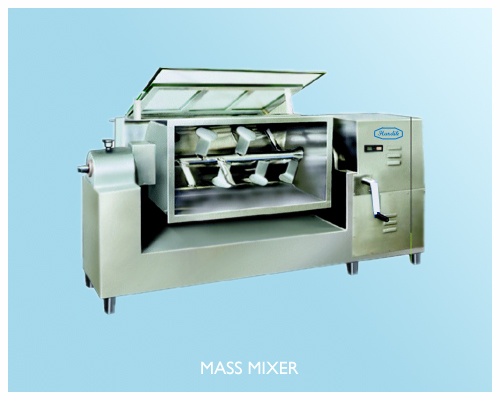

MASS MIXER

SALIENT FEATURES :

  • Well designed to facilitate Thorough Mixing of material
  • Safety Transparent Poly-Carbonate Dust cover provided with inter locking system
  • Safety device stop the machine with just opening of cover
  • Tilting device is provided for ease in unloading by means of Hand wheel
  • Ease in cleaning
  • Specially designed self-adjusting sealing arrangement to ensure no black particles enter into the mixing drum
  • Specially designed self-adjusting sealing arrangement is there to ensure no black particles Enter into the mixing drum
  • Ease in cleaning
TECHNICAL SPECIFICATION
modal MM50 MM100 MM200
Capacity (Kg) 50 100 200
Overflow capacity (Liter) 110 220 440
Working capacity (Liter) 88 356 190
Speed of Stirrer (RPM) 35 35 30
Motor 3 HP/440V/50CS 5 HP/440V/50CS 7.5 HP/440V/50CS
Net Weight (Kg) 350 450 600
